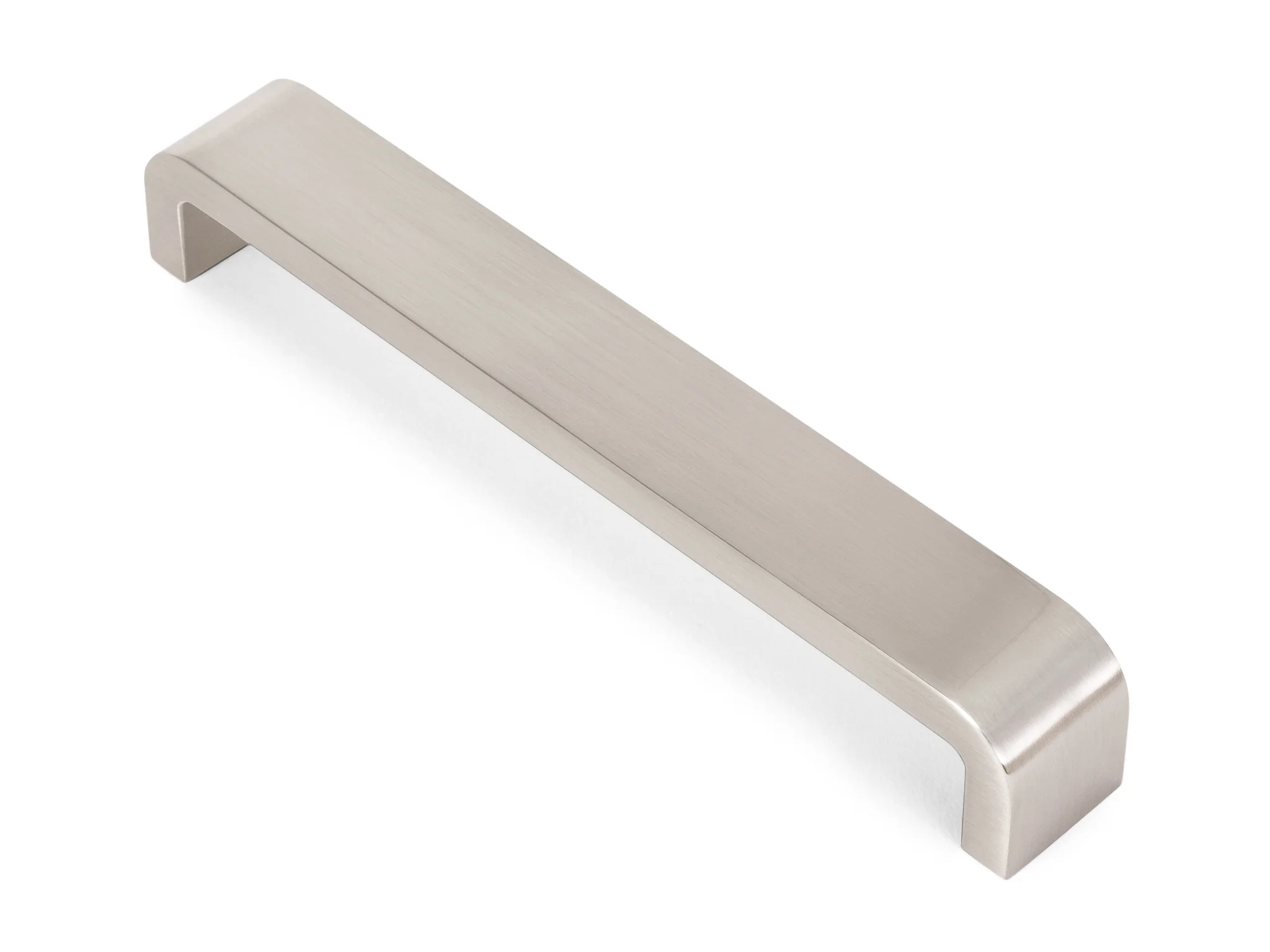

5.5" Size | Model #COS-D128-E4
8" Size | Model #COS-F192-E4
Note

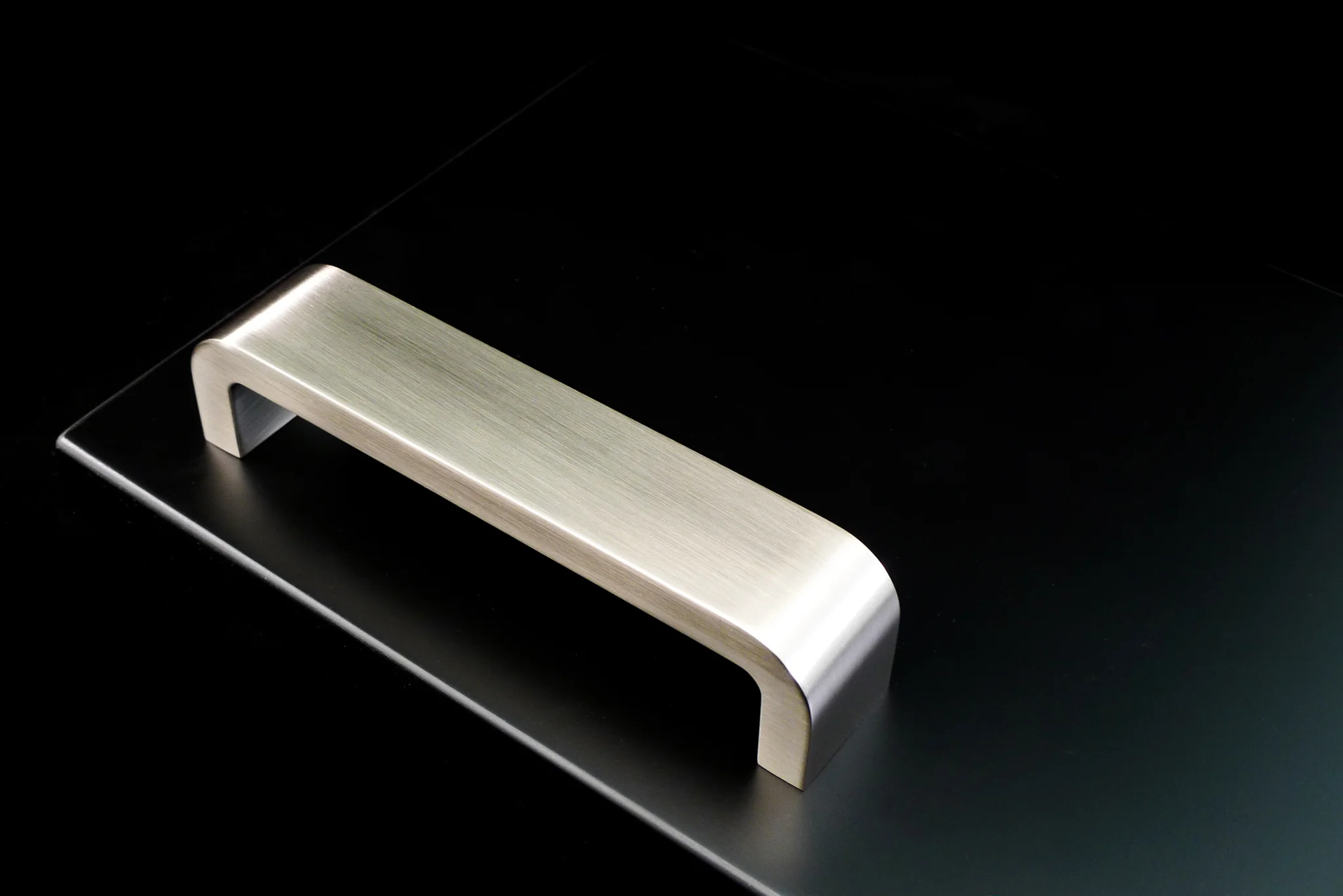

We used a small variety of 18" x 20" (460mm x 510mm) cabinet door fronts to showcase how our hardware would complement the different cabinetry finishes. Although we strive to demonstrate the truest form and colors of our hardware through controlled studio lighting, the photos from our website may or may not display the colors accurately depending on the calibration of colors on your monitor. We highly recommend the purchase of sample(s) to ensure our hardware can be appreciated not just by sight, but also by touch.
Product Details:
5.5" Size | Model #COS-D128-E4:
Length 137mm (5-7/16 in)
Width of base 028mm (1-1/8 in)
Width of center part of handle 028mm (1-1/8 in)
Projection 032mm (1-1/4 in)
Hole-to-hole 128mm (5-1/16 in)
Finger Space below bar 021mm (13/16 in)
Net Weight: 227g (8.0 oz)
8" Size | Model #COS-F192-E4:
Length 202mm (7-15/16 in)
Width of base 028mm (1-1/8 in)
Width of center part of handle 028mm (1-1/8 in)
Projection 032mm (1-1/4 in)
Hole-to-hole 192mm (7-9/16 in)
Finger Space below bar 021mm (13/16 in)
Net Weight: 326g (11.5 oz)
